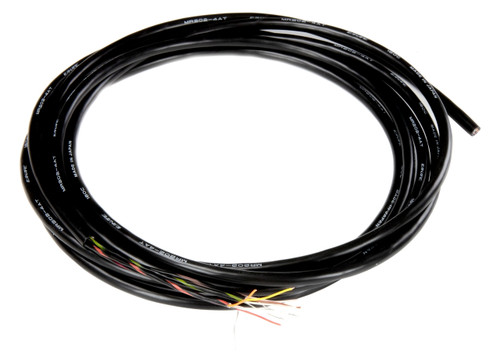

CANARE-4AT-FOOT 4 Multi Channel Microphone Cable, by the foot
CANARE-4AT-FOOT 4 Multi Channel Microphone Cable, by the foot
CANARE-4AT-FOOT 4 Multi Channel Microphone Cable, by the foot
CANARE-4AT-FOOT 4 Multi Channel Microphone Cable, by the foot

CANARE-4AT-FOOT 4 Multi Channel Microphone Cable, by the foot

(No reviews yet)
$1.99
SKU:
CANARE-4AT-FOOT
UPC:
759681057529
Maximum Purchase:
328 units
Buy Now
Buy Now

CANARE-4AT-FOOT 4 Multi Ch. Microphone Cable, by the foot

A practical, 100% foil shielded multichannel audio snake cable for general purpose studio applications. Each individually isolated channel consists of 2 twisted conductors under an easy-to-strip PVC jacket extruded over a foil shield and drain wire. The color striped PVC channel jacket alleviates the need to use costly shrink tubing. Surprisingly flexible, this multichannel cable is perfect for control room layout and interfacing between equipment racks, audio patchbays, mixers and tape decks.

  • Microphones.
  • Audio Rack Wiring.
  • Recording Suites.
  • Post Production.
  • Foil Shield with Drain Wire.
  • Variety Channels.

Mechanical Specifications

No. Channels (Pairs)
4
No. of Cond. (2 per channel)
8
Wt Std. Lng.
17 lbs (8 kgs)
Nom. O.D.
.299 in (7.6 mm)
PVC Jacket Nom. Thick.
.032 in (0.8 mm)
Brittle Point
-4F (-20C)
Channel O.D.
.106 in (2.7 mm)
Channel Jacket Nom. Thick.
11.8 mil
Insul. Type Thick
IPE 9.1 mil
Cond-AWG
(Qty/mil)
Cross Sec. Area
AC - #25
(7/7.09)
279
Pitch of Pairs
Shield Coverage
100% Alum Tape Drain Wire #25 AWG
