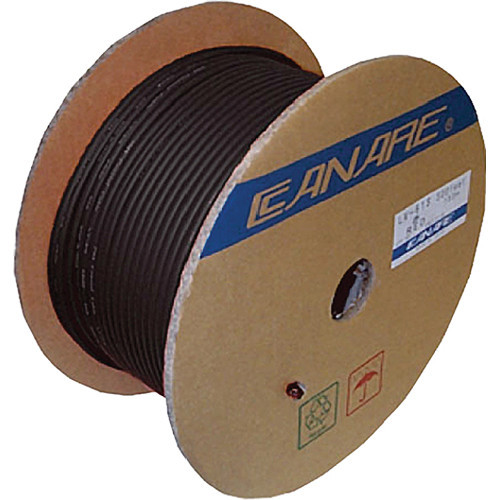

CANARE-8AT-100M 8 Multi Channel Microphone Cable, 100M Spool - Elite Core

Description

CANARE-8AT-100M 8 Multi Ch. Microphone Cable, 100 meter spool

A practical, 100% foil shielded multichannel audio snake cable for general purpose studio applications. Each individually isolated channel consists of 2 twisted conductors under an easy-to-strip PVC jacket extruded over a foil shield and drain wire. The color striped PVC channel jacket alleviates the need to use costly shrink tubing. Surprisingly flexible, this multichannel cable is perfect for control room layout and interfacing between equipment racks, audio patchbays, mixers and tape decks.

Microphones.
Audio Rack Wiring.
Recording Suites.
Post Production.
Foil Shield with Drain Wire.
Variety Channels.

Mechanical Specifications

No. Channels (Pairs): 8
No. of Cond. (2 per channel): 16
Wt Std. Lng.: 35 lbs (16 kgs)
Nom. O.D.: .433 in (11 mm)
PVC Jacket Nom. Thick.: .039 in (1 mm)
Brittle Point: -4Ã¥F (-20Ã¥C)
Channel O.D.: .106 in (2.7 mm)
Channel Jacket Nom. Thick.: 11.8 mil
Insul. Type Thick: IPE 9.1 mil
Cond-AWG (Qty/mil) Cross Sec. Area: AC - #25
(7/7.09)
279
Pitch of Pairs
Shield Coverage: 100% Alum Tape Drain Wire #25 AWG
