Elite Core HS-09

The HS-09 includes 2 detachable connector cables plus a zipper pouch carrying case. Choose Tan or Black with connection for Shure, Sennheiser, Audio-Technica, AKG, and more.

The HS-09 is an omnidirectional condenser earset microphone designed to provide excellent voice reproduction and high output gain for public speaking, singing, and theatrical applications. It is supplied with two detachable and replaceable 1mm diameter cables that securely screw into the headset with a threaded brass connector. The earset and cables are packed into a zippered pouch along with two foam windscreens.   Available in tan or black for Shure, Audio-Technica, Sennheiser, AKG, and more.

Specifications

  • Element: Back Electret
  • Polar Pattern: Omni-Directional
  • Frequency Response: 20Hz - 20kHz
  • Sensitivity: -35 +/-3dB 1V/Pa
  • Output Impedance: 2kΩ +/-30%
  • SPL Max: 140dB
  • Operating Voltage: 0.8 - 5V
  • Weight: 13g
  • Mic Dimensions: 3mm

Technical

AVAILABLE CABLE TERMINATIONS

AX (Audix) - Compatible Transmitter Models (TA3F)
360


AT - Compatible Transmitter Models(4 Pin Hirose)
T27, 31, 51, 200, 210, 300, 310
Series 1100, 1400, 2000, 3000


AKG - Compatible Transmitter Models (TA3F)
PT40, PT60, PT61, PT80, PT81, PT400, PT2000, PT4000


ET (Electrovoice) - Compatible Transmitter Models (TA4F)
3000 Series, N/DYM NBPU, MSB, BPV, BPU, BPU2, CSB-1000, RE-1, RE-2

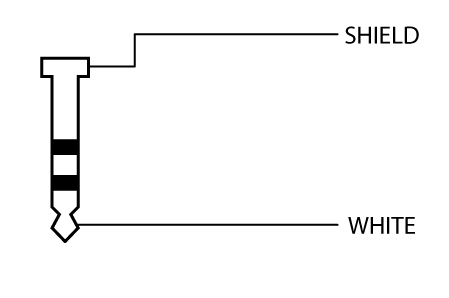

NL (Nady) - Compatible Transmitter Models (3.5mm)
UB10, UB16, WLT14, WLT15


BY (Beyer) - Compatible Transmitter Models (TA4F)
Opus Series, TS-100, TS-300, TS-500, TS-800

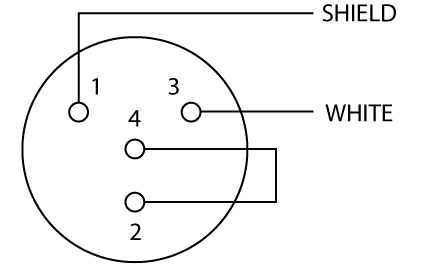

MP (MiPro) - Compatible Transmitter Models (TA4F)
ACT-707-TS (TE), ACT-801 TS (TE), MT103, MT303, MT801, MT808


CR (Carvin) - Compatible Transmitter Models (TA4F)
UX16-BP


LS (Lectrosonics) - Compatible Transmitter Models (TA5F)
SM Series, UMa Series, LMa Series


SY (Sony) - Compatible Transmitter Models (Sony K1324 (3.5 mm))

WRT-805, UTX-B1, UWP Series

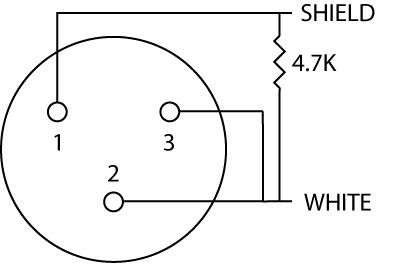

SV (Samson)- Compatible Transmitter Models (TA3F)
CT3, CT7, VT12L, UT1L, T32


SH - (Shure) Compatible Transmitter Models (TA4F)
BLX1, GLXD1, SLX1, L1, L11, LX1, SC1, U1, UC1, UT1, T1, ULX1, UR1, PGX1

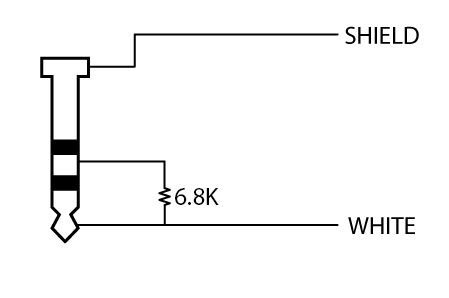

SN - (Sennheiser) Compatible Transmitter Models (3.5mm plug)
Evolution Series, EW100, 300, 500, SK1093

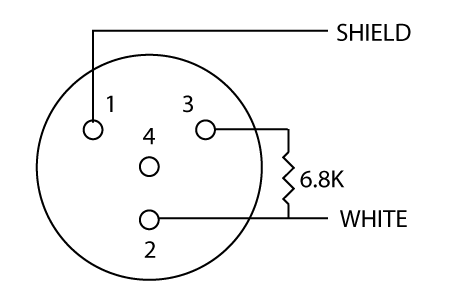

TS – (Telex) Compatible Transmitter Models (TA4F)
LT100, PST16, VB12, WT10, WT50, WT55, WT60, WT80, WT700, WT1000


VS (Vega) - Compatible Transmitter Models (TA4F)
T23, T25, T37, T93, Pro-2, BP2020, ST2020
